Carmate

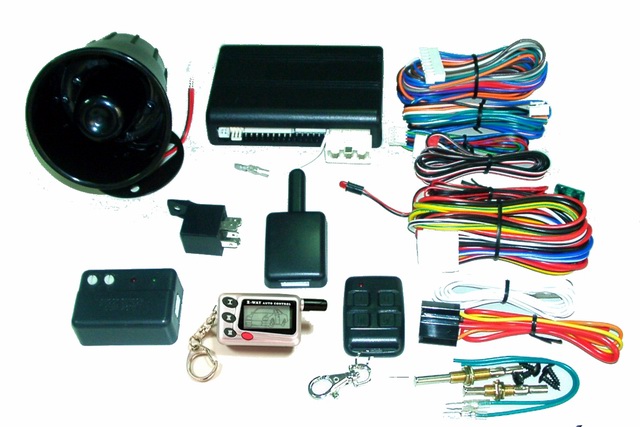

Based on the already popular Engine start alarm, this new pager alarm has all the features of the Sun One engine start plus additional pager functions built into the remote. Pager features include:

-Remote Engine start

-Vibration

-Audio alert

-Visual confirmation

- Built-in Turbo Timer


Arming	Silent Arming		Disarming

Trunk Release	Battery Low		Mute Mode

Trigger (sensor)	Trigger (door)		Trigger (Acc)

Prepare to start engine		Engine warm-up

Icons of the 2-way pager controller

Technical Specifications

2 Way Alarm with Remote Engine start

Application:

After installation of the vehicle-base transmitter to the car alarm main unit, the 2 way alarm pager can be used for such functions as engine start, car door lock/unlock, hood /trunk release etc….Every time a button is pressed on the pager unit OR in the case of any theft threat, the vehicle-base transmits a signal to the handheld unit to show the latest car status on its display. Car owner thus can monitor various car status on the LCD display will also be alerted simultaneously by beep sound or vibration.

Alarm Functions
1.Code Hopping and Code Learning remote system 2.Pre-learned one 2-way 4-button Controller with LCD panel. expandable to four transmitters 3.Remote starting 4.Remote (silent) arming / disarming 5.Starter disables (500mA negative output) in the arming 6.Auto re-arms 7.Driving lock mode 8.Car (silent) searching 9.Audible intrusion zone identification 10.Defective zone alert and by-pass 11.Power failure memory 12.Key-less entry while ignition is on 13.Remote panic 14.Anti-hijack by transmitter and 1 minute delay 15.Emergency key reset 16.Last Door Arming set by transmitter	17.Crank adjustment by transmitter 18.When triggered by sensor, the siren will sound for 30 sec. and reset automatically 19.When triggered by door, trunk , hood or ACC, the siren will sound for 60 seconds 20.Built-in actuator’s relay 21.Central locking, active time selectable by jumper-0.5 or 3.5 seconds 22.Two negatives and one positive trigger input 23.Plug-in dual zone shock sensor 24.Pre-warn away 25.Multi-function LED status indicator 26.Flashing fuse protects marker lights 27.Remote trunk release (for optional trunk opener system 28.Windows close (for optional window close system)
Car alarm main unit specification
Remote Working temp. range: -30?~70? Transmission mode: ASK Freq. range: 433.92MHz Freq. error:: ±75khz Working voltage: 12v Power supply 23A TX power: 0 dBm/0.001w Standby current: 0 Signal transmission mode hopping Freq.intermodulation: 4.5kHz TX power consumption 70 mA Dimension: L:60 W:36 H:10	Pager Working temp.range: -30?~70? Working voltage: 12v Power supply: Car battery Standby average current: 3.5 mA Relay maximum current output: 1.Parking light 15A 2.Power central lock 15A 3.Starter motor 30A

Pager Specification
Features of the 2 way display alarm pager
1.Battery low alert
2.Different audio alert for car emergency status
3.Vibration alert
4.Equipment-free code-learning by receiver pager

   Pager Specification

Handheld receiver
Working temp. range:           -30?~70?
TX mode                                       ASK
RX mode:                                      FSK
Freq. range:                          433.92MH
Freq. error::                              ±75 KHz
Working voltage:                      1.0v~1.6v
Power supply                       AAA x 1 pc
TX power:                     12dBm / 0.158W
Sleeping mode current:                25 u A
Receiving sensitivity:                -120dBm
Code format:                             hopping
Receiving sensitivity:                -110dBm
Standby average current:            150 u A
Freq. intermodulation:                4.5kHz
TX current consumption:               70 mA
Audio-alert power consumption:     90 mA
Backlight power consumption:       25 mA
Vibration power consumption:    190 m A
Dimension in mm           L:70 W:33 H:20 Vehicle-base transmitter
Working temp. range          -30?~70?
TX mode:                                      FSK
RX mode:                                     ASK
Freq. range :                       433.92MHz
Freq. error :                            ±75 KHz
Working voltage:                             5v
Power supply:                        Main unit
TX power:                              +27dBm
Sleeping mode current:              25 u A
Receiving sensitivity:              -110dBm
Code format:                            hopping
Receiving codes format:     fixed / 65536
Standby average current:          150 u A
Freq. intermodulation:                4.5kHz
TX current consumption              70 mA
Dimension in mm           L:82 W:40 H:20

1, Handheld: Battery life about 6 months for standby.
2, Handheld: Remote control range: 300 ~ 600 m. Receiving range: 800~ 1200m .
3, Remote: Battery life for about. 10000 times transmission.
4, Remote: Remote control range: 30~60 m.
